gpio.h File Reference

Cortex-M4 specific GPIO HAL interface. More...

#include "utils/gpio_types.h"

Include dependency graph for gpio.h:

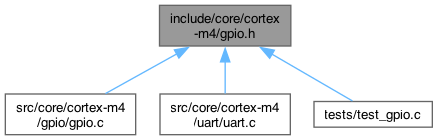

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
void	hal_gpio_setmode (hal_gpio_pin pin, hal_gpio_mode mode, hal_gpio_pullup_pulldown pupd)
	Set the mode of a GPIO pin.
hal_gpio_mode	hal_gpio_getmode (hal_gpio_pin pin)
	Get the current mode of a GPIO pin.
void	hal_gpio_digitalwrite (hal_gpio_pin pin, hal_gpio_state state)
	Write a digital state to a GPIO pin.
hal_gpio_state	hal_gpio_digitalread (hal_gpio_pin pin)
	Read the digital state from a GPIO pin.
void	hal_gpio_enable_rcc (hal_gpio_pin pin)
	Enable the RCC clock for a specific GPIO pin's port.
void	hal_gpio_set_alternate_function (hal_gpio_pin pin, hal_gpio_alternate_function_t alt_fn)
	Set the alternate function for a GPIO pin.
void	hal_gpio_set_output_type (hal_gpio_pin pin, hal_gpio_output_type otyper)
	Set the output type for a GPIO pin.
void	hal_gpio_set_output_speed (hal_gpio_pin pin, hal_gpio_output_speed speed)
	Set the output speed for a GPIO pin.

Detailed Description

Cortex-M4 specific GPIO HAL interface.

This header defines the function prototypes for configuring and controlling GPIO pins on Cortex-M4 microcontrollers. Functions include setting pin modes, reading and writing digital states, enabling clocks, and configuring alternate functions, output type, and speed.

Copyright

© NAVROBOTEC PVT. LTD.

Function Documentation

hal_gpio_digitalread()

hal_gpio_state hal_gpio_digitalread

(

hal_gpio_pin

pin

)

Read the digital state from a GPIO pin.

Parameters

pin	The GPIO pin to read.

Returns

The current digital state of the pin (HIGH/LOW).

Read the digital state from a GPIO pin.

Parameters

pin	Pin identifier to read

Returns

Current digital state of the pin (HIGH or LOW)

Reads the IDR register for the specified pin and returns the current input state.

< GPIOA base address

hal_gpio_digitalwrite()

void hal_gpio_digitalwrite	(	hal_gpio_pin	pin,
		hal_gpio_state	state )

Write a digital state to a GPIO pin.

Parameters

pin	The GPIO pin to write.
state	The digital state to set (HIGH/LOW).

Write a digital state to a GPIO pin.

Parameters

pin	Pin identifier to control
state	Desired output state (HIGH or LOW)

Uses the BSRR register for atomic set/reset operations to avoid read-modify-write sequences.

// Example: Set PA5 high
hal_gpio_digitalwrite(PA5, HAL_GPIO_HIGH);

< GPIOA base address

< GPIOA base address

hal_gpio_enable_rcc()

void hal_gpio_enable_rcc

(

hal_gpio_pin

pin

)

Enable the RCC clock for a specific GPIO pin's port.

Parameters

pin	The GPIO pin whose port clock is to be enabled.

Enable the RCC clock for a specific GPIO pin's port.

Parameters

pin	Pin identifier whose port clock should be enabled

Enables the AHB1 peripheral clock for the GPIO port containing the specified pin. This is automatically called by other GPIO functions when needed.

hal_gpio_getmode()

hal_gpio_mode hal_gpio_getmode

(

hal_gpio_pin

pin

)

Get the current mode of a GPIO pin.

Parameters

pin	The GPIO pin to query.

Returns

The current mode of the pin.

Parameters

pin	Pin identifier to query

Returns

Current GPIO mode of the specified pin

Reads the MODER register for the specified pin and returns the current mode configuration.

< GPIOA base address

hal_gpio_set_alternate_function()

void hal_gpio_set_alternate_function	(	hal_gpio_pin	pin,
		hal_gpio_alternate_function_t	alt_fn )

Set the alternate function for a GPIO pin.

Parameters

pin	The GPIO pin to configure.
alt_fn	The alternate function to assign to the pin.

Set the alternate function for a GPIO pin.

Parameters

pin	Pin identifier to configure
alt_fn	Alternate function number/type to assign

Configures the specified pin for alternate function mode and sets the appropriate alternate function selection in AFRL/AFRH. Automatically enables the GPIO port clock if needed.

// Example: Set PA2 to USART2_TX alternate function
hal_gpio_set_alternate_function(PA2, HAL_GPIO_AF_USART2);

< GPIOA base address

< GPIOA base address

< GPIOA base address

< GPIOA base address

hal_gpio_set_output_speed()

void hal_gpio_set_output_speed	(	hal_gpio_pin	pin,
		hal_gpio_output_speed	speed )

Set the output speed for a GPIO pin.

Parameters

pin	The GPIO pin to configure.
speed	The output speed (low, medium, high, very high).

Set the output speed for a GPIO pin.

Parameters

pin	Pin identifier to configure
speed	Desired output speed (low/medium/high/very high)

Sets the output speed in the OSPEEDR register for the specified pin. Does not change the pin mode - must be configured separately.

< GPIOA base address

< GPIOA base address

hal_gpio_set_output_type()

void hal_gpio_set_output_type	(	hal_gpio_pin	pin,
		hal_gpio_output_type	otyper )

Set the output type for a GPIO pin.

Parameters

pin	The GPIO pin to configure.
otyper	The output type (push-pull or open-drain).

Set the output type for a GPIO pin.

Parameters

pin	Pin identifier to configure
otyper	Output type (push-pull or open-drain)

Sets the output type in the OTYPER register for the specified pin. Does not change the pin mode - must be configured separately.

< GPIOA base address

< GPIOA base address

hal_gpio_setmode()

void hal_gpio_setmode	(	hal_gpio_pin	pin,
		hal_gpio_mode	mode,
		hal_gpio_pullup_pulldown	pupd )

Set the mode of a GPIO pin.

Parameters

pin	The GPIO pin to configure.
mode	The desired mode (input, output, alternate function, analog).
pupd	Pull-up/pull-down configuration for the pin.

Set the mode of a GPIO pin.

Parameters

pin	Pin identifier (e.g., PA5, PC13)
mode	Desired pin mode (input/output/alternate/analog)
pupd	Pull-up/pull-down configuration

This function:

1. Enables the GPIO port clock via RCC
2. Configures the pin mode in MODER register
3. Sets pull-up/pull-down resistors in PUPDR register

Note

Automatically enables the GPIO port clock if not already enabled

// Example: Configure PA5 as output with no pull-up/pull-down
hal_gpio_setmode(PA5, HAL_GPIO_MODE_OUTPUT, HAL_GPIO_NO_PULL);

< GPIOA base address

< GPIOA base address

< GPIOA base address

< GPIOA base address
